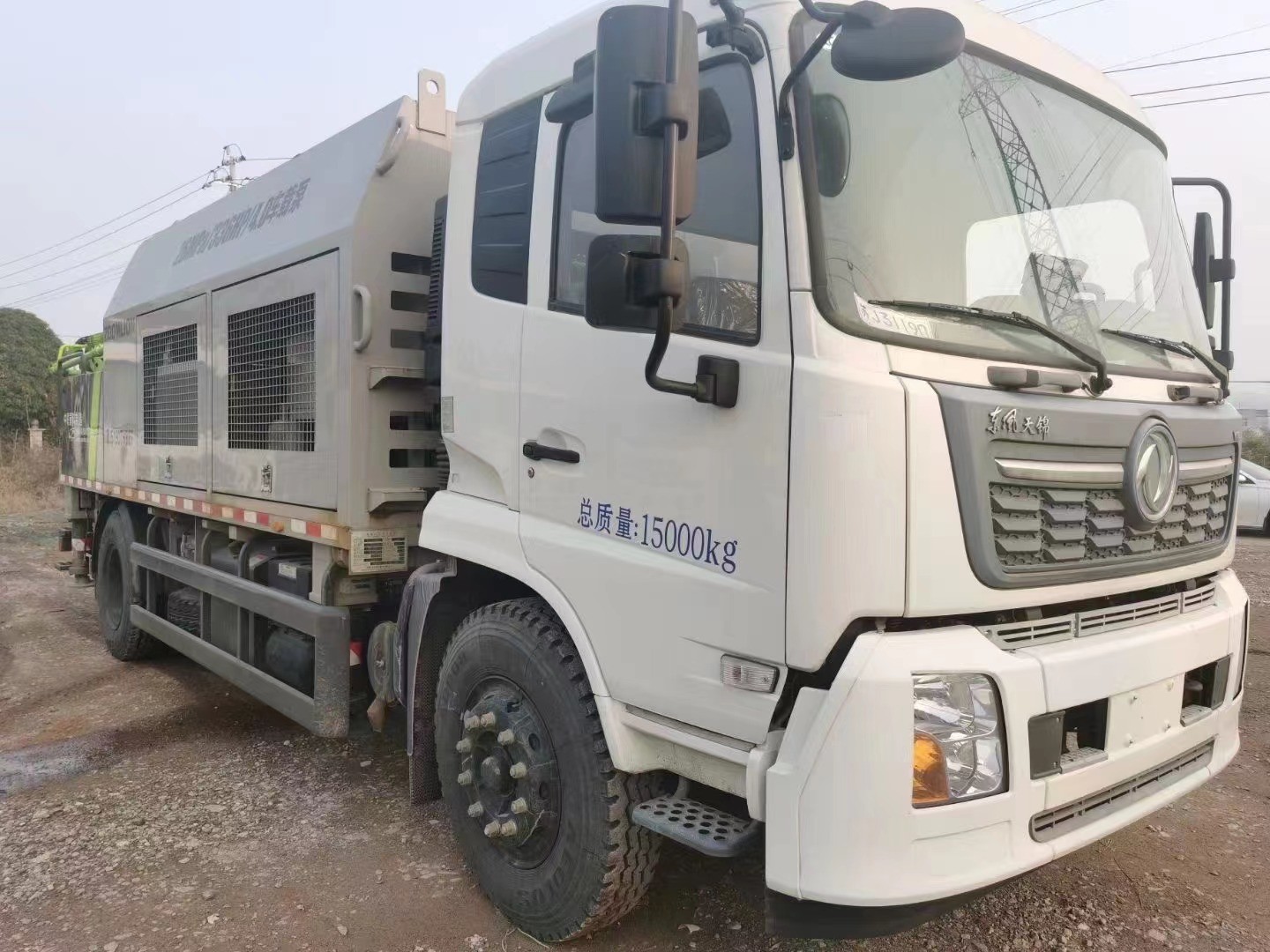

Zoomlion 10022/10026 Models 2021/2022 National IIII Emission Used Vehicle Mounted Pump
Product Description:
Truck-mounted concrete pump refers to the concrete pump installed on the chassis of the motor vehicle, which is easy to move and flexible. According to whether there is a cloth rod, it can be divided into vehicle pump and pump truck.
Truck-mounted concrete pump, referred to as truck-mounted pump, refers to the concrete pumping equipment used to pump concrete pumping mechanism installed on the chassis of the car.
Therefore, it has the function of driving and pumping concrete. It is mainly used to complete the following work: ① concrete pouring construction of buildings and workshops; ② Concrete pouring construction of roads, overpasses and Bridges; ③ Concrete pouring construction of airports, rail transit and tunnels.
The vehicle pump, the tow pump and the pump truck are called the three representative models of the concrete conveying pump.
In terms of working mobility, the tow pump is the worst, every time you work, you need to arrange the concrete pipe in advance, and the change is difficult, the cloth range is also small, and the transfer needs another trailer traction; The pump is equivalent to installing a boom on the basis of the on-board pump, and the working flexibility has been further improved, but the cloth height is relatively limited, and has now reached 100m; The maximum pumping height of the vehicle pump can reach 250m.
From the pumping operation power point of view, the towed pump needs to rely on its own equipment engine; The on-board pump and the pump truck can use the chassis engine, and can also be attached and used as a secondary engine.
Features
| NO | Name | Parameter |
| Vehicle parameters |
| 1 | Model | ZLJ5140THBEE-10022R |
| 2 | Total length | 9100mm |
| 3 | Overall width | 2450mm |
| 4 | Total height | 3180mm |
| 5 | All up weight | 13800kg |
| Pumping system parameters |
| | Maximum Theoretical Throughput | 100/50m³/h |
| | Concrete transfer pressure | 22/12Mpa |
| | Convrete cylinder | 8.3Mpa |
| | Conveying cylinder inner diameter: | 230mm |
| | Cylinder stroke | 1600mm |
| | Bucket capacity | 600L |
| | Filling height | 1500mm |
| | Rated power/speed | 186/2100kW/r/min |
| | Engine type | BF6M1013-25T3R/1 |
| Chassis parameter |
| | Chassis brand: | Faw Jiefang |
| | Emission standard | Country IIII |
| | Fuel tank capacity | 600L |
| | Engine type | BF4M2012-16E4 |
